CRM Membrane for Oily Emulsion Water Treatment

CRM Membrane for Oily Emulsion Water Treatment
In the metal material processing, machinery manufacturing and other industries, emulsions are usually used as coolants or lubricants. After the emulsion is used repeatedly for many times, it is deteriorated and becomes a waste emulsion to be discharged. Although the water content is not large, the CODcr content is as high as several thousand to 200,000 mg/L, and the oil content is also high. Because the oil is emulsified as O/W forms, traditional filters and bio-chemical way can hardly treat. If the emulsion is discharged directly without treatment, it will bring serious harm to the environment.The main components of this type of wastewater are mechanical oils, surfactants, soluble organic matter and solid suspended solids.

Disadvantages of traditional process:
● Not good quality of treated water
● High consumption of chemicals
● Much floor space
● Low reliability of performance
● Low recovery rate of oil
● High running cost
● High solid waste discharge
● Complicated operation and maintenance

CRM Membranes for Emulsion Treatment
Ceramic membrane filtration method is currently a new process and is suitable for most emulsions. For emulsion treatment by membrane filtration technology, the effluent water quality is good and reused repeatedly, the management is simple, achieving better results.

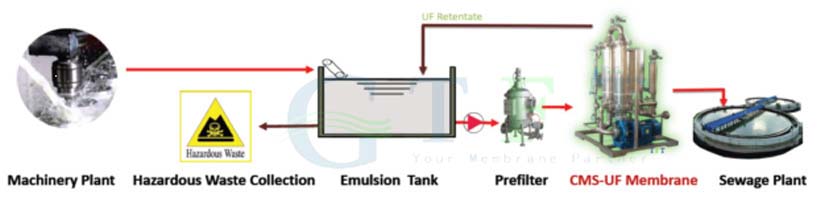

Process Diagram

Process Advantages
High quality of filtrate with high rejection of oil
Reliable and stable performance
A green process without chemical agent
Valuable oil and coolants can be recycled
Low operating cost
Long membrane worklife
Reduce solid waste discharge
Low labor and maintenance cost
Compact design with small foot print

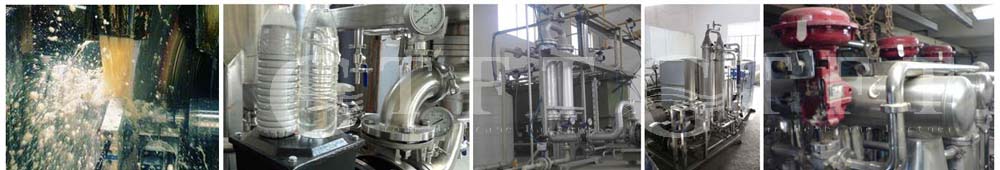

Reference and Cases:
Cutting fluid emulsion in machenical industry
Degreasing bath emulsion treatment
Cold-rolling emulsion in steel industry
CIP caustic stream treatment

If you need more details about ceramic membrane process for  oily emulsion water treatment in machinery industry,please do not hesitate to contact with us or send email to us. We sincerely welcome your visit to our plant and reference projects.TFT is willing to communicate and share information with you on engineering process issues. We are looking forward to developing more market and more applications with your help, bring this new technology to end users, create more values and benefits for all parties.
