Product Description
Ceramic MF/UF and polymeric nanofiltration / ultrafiltration separation technology are customized processes for special fluids in process industry. Because the properties of the industrial fluids vary widely, it is difficult to design membrane processes according to uniform standards. Industrial production generally requires new processes to be explored and verified through pilot tests. Through experiments, you can understand the influence of factors such as membrane pore size, temperature, pressure, and membrane surface flow rate on the filtration process. You can understand the mutual relationship of flux, concentration multiple, dialysis water volume, and yield. You can understand the influence of the regeneration cleaning cycle, backwash cycle, Cleaning agents and cleaning process on the performance of the membrane; through the data collected in these experimental processes, the technical feasibility and economic feasibility of the membrane process can be estimated, so as to provide detailed reference for decision makers and designers. TFT has rich experience in membrane process development, we can design and fabricate membrane pilot units for different applications. According to membrane types, there are different series of pilot machines like ceramic MF/UF membrane pilot, spiral NF membrane pilot, spiral UF membrane pilot, plate membrane pilot, pervaporation pilot. All the pilot machine can be made as wide range of operating pressures: low-pressure pilot (0.5-10.0bar), medium-pressure pilot (10-35bar), and high-pressure pilot(35.0-100bar).

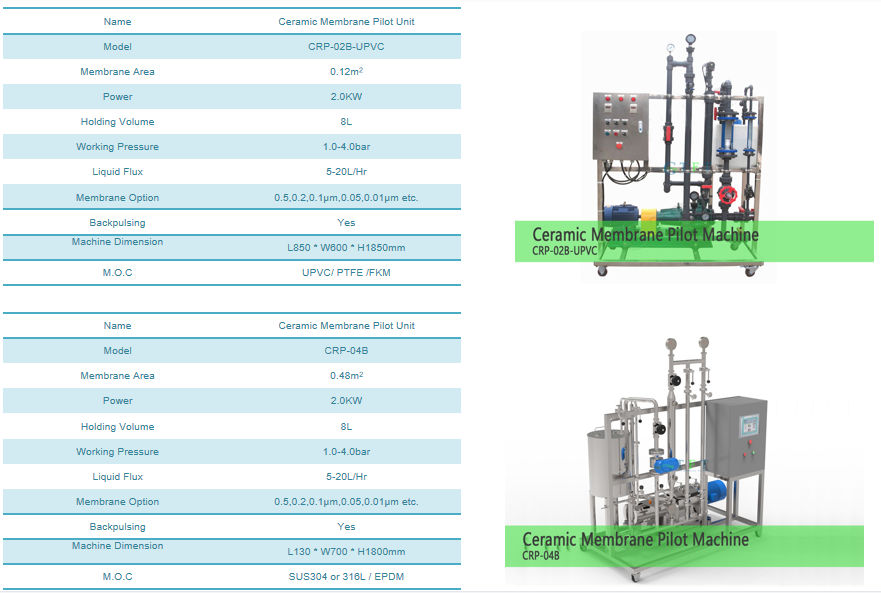

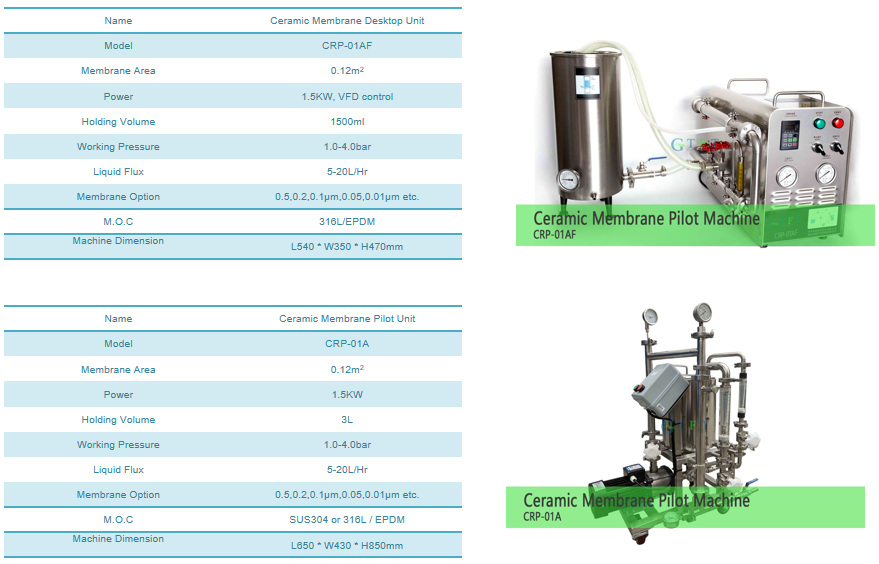

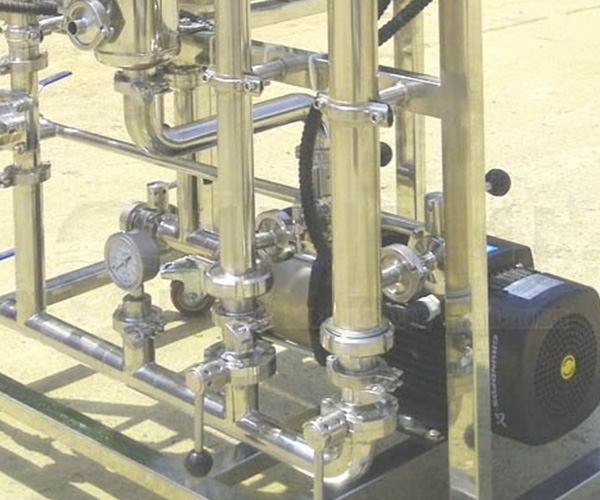

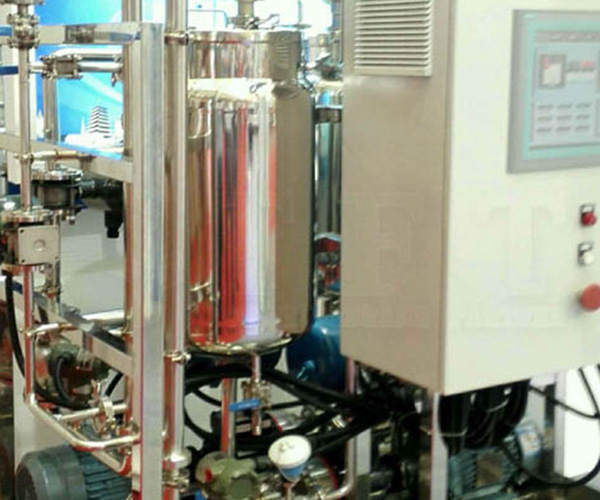

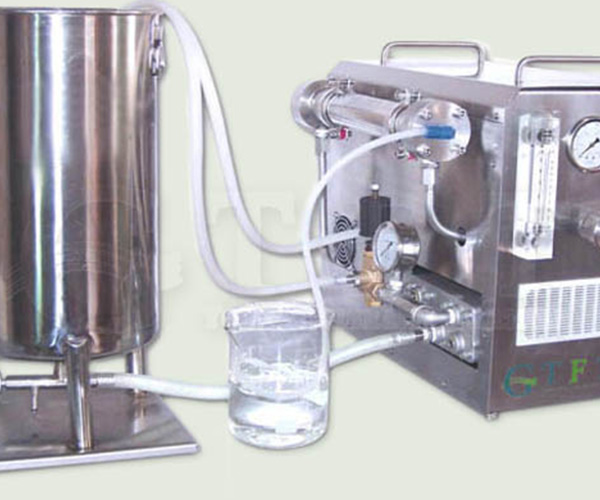

CRP series ceramic membrane pilot unit generally has 1 or 2 ceramic membrane elements. The machine is made as mobile skid mounted design, including membrane, housing, pump, valve, pressure gauge, flow meter, thermometer, heat exchanger, safety filter, CIP tank,frame, control cabinet, etc.  Manual or Automatic control can be optional;  CRP series pilot units are widely applied in experiments of process fluid, research work in universities, research institutes, enterprise research and development centers, etc.

Performance characteristics of  multifunctional membrane pilot lab units
* Full range membranes for option with different channel and pore size
* Optimized process design, suitable for industrial research and development
* Completely assemblied with housing, pump, valves ,instruments
Exquisite appearance by fine processing and surface polishing
Compact skid-mounted design in small footprint
Small dead volume, minimum testing liquid quantity
Easy operation under remote training
Simple maintenance l Mobile unit with casters, light and movable

Process Evaluation Parameters
Filtration Flux at l/m2.h
Crossflow Velocity
Poresize & MWCO
Operation Presssure
VCF (Volume Concentrate Factor)
Volume of Diafiltration Water
Chemical Cleaning

Customized Order Requirement
Poresize & MWCO of membrane
M.O.C: 316L or AISI304
Control: Manual or Automatic
Power: 220V-380V-460V/50-60Hz
Heat Exchanger
Capacity or membrane area
